Inline Connector

The inline connector lug allows for end-to-end cable connections, ideal for extending cables in a secure and reliable manner. This design maintains consistent electrical flow between connected cables, reducing resistance and minimizing power loss. Inline connectors are commonly used in electrical installations requiring cable extensions or repairs, making them valuable in both fieldwork and fixed installations.

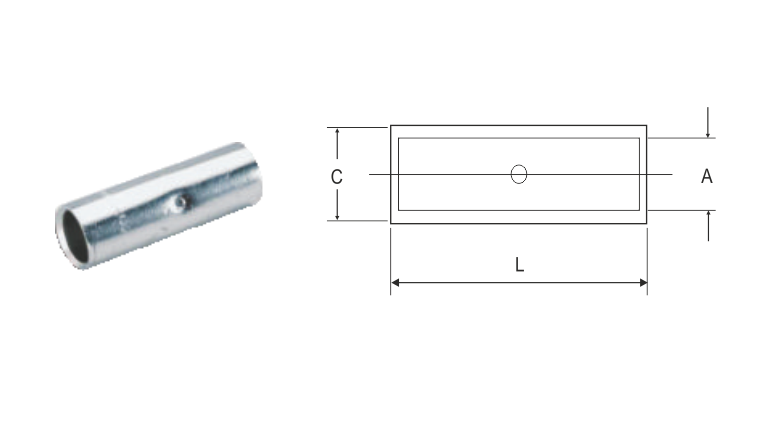

Part No.	Cable Size mm2	Cable Lug Dimension (mm)
		A	C	L
EUIC1.5	1.5	1.8	3.7	22
EUIC2.5	2.5	2.5	4	22
EUIC4.0	4	3.2	4.8	22
EUIC6.0	6	3.8	5.5	22
EUIC10	10	4.5	6.2	22
EUIC16	16	5.5	7.1	44
EUIC25	25	6.8	8.8	47
EUIC35	35	8.2	10.6	47
EUIC50	50	9.5	12.4	47
EUIC70	70	11.2	14.7	50
EUIC95	95	13.7	17.4	55
EUIC120	120	15	19.4	65
EUIC150	150	16.5	21.2	65
EUIC185	185	18.5	23.5	65
EUIC240	240	21	26.5	90
EUIC300	300	23.5	30	90
EUIC400	400	28.5	36.5	90
EUIC500	500	30	39	115
EUIC630	630	35	45	115
EUIC800	800	39	50.6	230
EUIC1000	1000	43	56.2	250

Technical Data

• All dimensions in mm
• Material: cable lugs manufactured from electrolytic copper
• Range: cable lug range from 1.5 to 1000 mm with different studhole
• Finish: lead free electro tin plated to prevent atmospheric corrosion
• Application: used for termination of copper conductors to equipment, transformers, busbars & switch gear panels.
