Cable Lug NEMA Type Four Hole

This specialized four-hole cable lug has a precise 44.50 mm hole spacing, ensuring compatibility with specific busbar configurations. The four bolting holes enhance the connection’s mechanical strength and stability, making it suitable for high-power and high-vibration applications. This lug type is often used in industries where customized fittings are required for compatibility with particular equipment or standards.

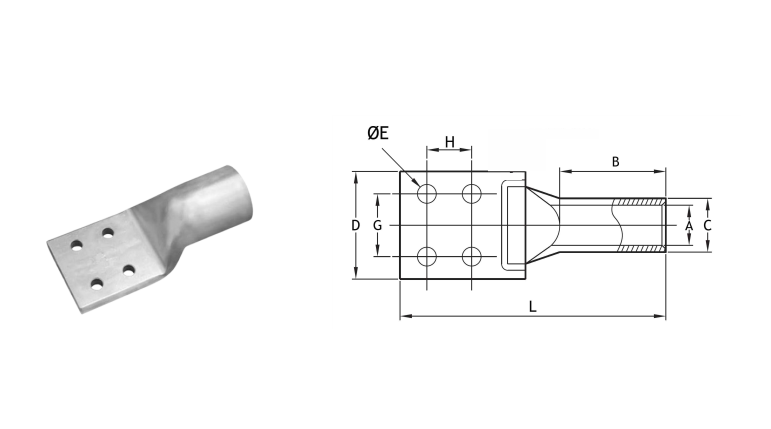

Part No.	Cable Size mm2	Stud Hole Size	Cable Lug Dimension (mm)
		E	A	C	D	B	G	H	L
CT4NE24014	240	14.5	21	26.5	76.000	57	44.5	44.5	160
CT4NE30014	300	14.5	23.5	30	76.000	68	44.5	44.5	172
CT4NE40014	400	14.5	30	36	76.000	73	44.5	44.5	181
CT4NE50014	500	14.5	31	38	76.000	76	44.5	44.5	181
CT4NE63014	630	14.5	34	40	76.000	80	44.5	44.5	187

Technical Data

• All dimensions in mm
• Material: cable lugs manufactured from electrolytic copper
• Range: cable lug range from 240 to 630 mm with di erent stud hole
• Finish: lead free electro tin plated to prevent atmospheric corrosion
• Application: used for termination of copper conductors to equipment, transformers, busbars & switch gear panels.
