Exothermic Welding

Exothermic welding, also known as thermite welding, is a specialized welding process widely used in electrical engineering to create permanent and highly conductive bonds between metals, typically for grounding and bonding applications. This process relies on a chemical reaction between aluminum powder and metal oxides to generate intense heat, which melts the metals to form a strong, durable connection. Exothermic welding is essential in critical infrastructure, such as electrical grids, telecommunications, railways, and grounding systems, where reliable and long-lasting connections are required. The process has several unique advantages over other bonding methods, including mechanical strength, corrosion resistance, and the ability to withstand high electrical currents without deteriorating.

The foundation of exothermic welding lies in the chemical reaction that creates molten metal, joining two or more components without requiring an external power source. This reaction, known as an aluminothermic reaction, is initiated by igniting a mixture of powdered aluminum and a metal oxide, often copper oxide for copper-based connections. When ignited, this mixture undergoes a vigorous chemical reaction, producing temperatures exceeding 2500°C (4500°F). The heat generated is more than sufficient to melt most metals, enabling a fusion that bonds them on a molecular level. This bond is free of impurities, gaps, and oxides, creating an excellent electrical conductor with a resistance equal to or lower than the base metals used.

One of the most significant advantages of exothermic welding is its permanence. Unlike mechanical connections, which may loosen over time due to vibration, thermal expansion, or corrosion, exothermic welds form an inseparable bond between metals. Once the weld cools and solidifies, it becomes a single homogenous mass that is not affected by environmental factors such as moisture, temperature fluctuations, or corrosive elements. This durability makes exothermic welding especially suitable for grounding and bonding applications, where a failure could lead to dangerous faults or safety hazards. In grounding systems, exothermic welding is often used to connect grounding rods, conductors, and other metal components in a grid or network designed to dissipate electrical surges into the earth. Proper grounding is crucial for protecting electrical systems from lightning strikes, static discharge, and other transient events that could otherwise damage equipment or pose a hazard to personnel. By using exothermic welding to create these connections, engineers can ensure that the grounding system remains intact and effective for the entire lifespan of the installation, even in extreme conditions.

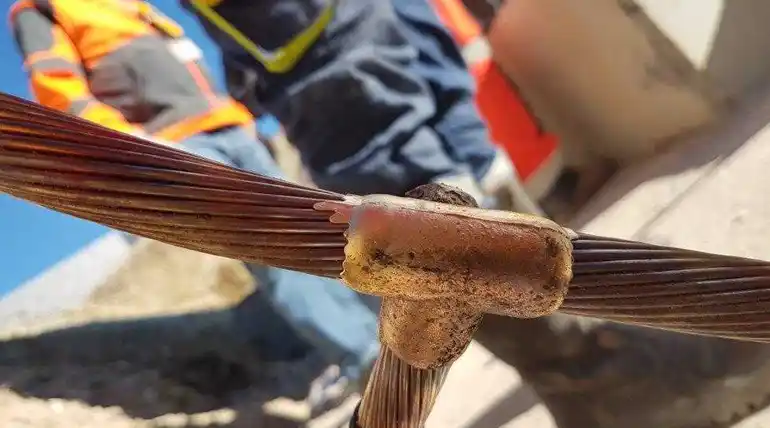

The exothermic welding process is relatively simple and requires only a few basic components: a mold, welding powder, an ignitor, and the metals to be joined. The mold, typically made from graphite or another heat-resistant material, is designed to hold the metals in place and direct the flow of molten metal during the welding process. Different molds are available to accommodate various joint configurations, such as T-connections, butt joints, or splices. The mold is reusable for multiple welds, though it will eventually degrade after repeated exposure to high temperatures.

Exothermic welding is highly versatile and can be used to bond various metals, including copper, steel, brass, and bronze. In applications where copper grounding conductors are joined to steel grounding rods or other dissimilar metals, exothermic welding provides a reliable connection that is not susceptible to galvanic corrosion. This advantage is particularly important in outdoor environments, where the presence of moisture and other corrosive elements could degrade mechanical connections over time. With exothermic welding, the metals are bonded in a way that ensures consistent performance and minimal maintenance.

Although exothermic welding is generally straightforward, certain conditions can affect the quality of the weld. Environmental factors, such as extreme cold or wet weather, may interfere with the ignition or cause the metals to cool too quickly, leading to weak or incomplete bonds. To mitigate these issues, technicians often use special enclosures or heating elements to maintain the mold at an optimal temperature, especially when working in challenging outdoor environments. Quality control measures, such as visual inspections and resistance testing, are also critical to ensure that each weld meets the required standards.

Exothermic welding has continued to evolve, with advancements aimed at enhancing safety, ease of use, and environmental compatibility. Modern exothermic welding kits are designed with features like self-contained ignition systems, which eliminate the need for an open flame and reduce the risk of accidental ignition. In addition, the development of environmentally friendly welding powders has reduced the ecological impact of this process, particularly in large-scale projects where significant quantities of welding material are used. As the demand for reliable electrical connections grows, innovations in exothermic welding technology are likely to play a pivotal role in meeting future needs.
