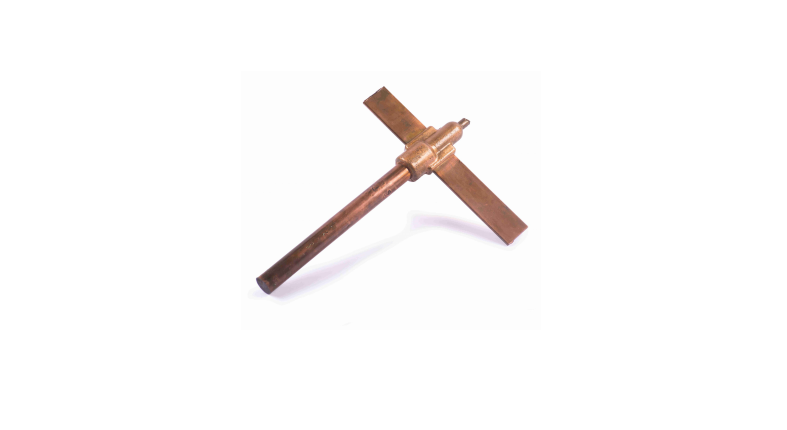

Busbar Tape to Rod Joint

The busbar tape-to-rod joint connects a busbar tape to a grounding rod, forming a low-resistance path to earth. Exothermic welding creates a permanent, conductive bond between the tape and rod, ensuring that electrical surges are efficiently dissipated. This joint is commonly used in electrical substations, commercial facilities, and industrial sites where grounding rods are used to enhance the grounding system. The strong bond provided by exothermic welding makes it suitable for environments with high electrical demands and exposure to outdoor elements.

Rod Size (Dia mm)	Bus Bar Size mm	Mould	Weld Powder
12.7	3X25	CCK-127325	115
	3X50	CCK-127350	200
	4X40	CCK-127440	200
	4X50	CCK-127450	250
	5X40	CCK-127540	250
	6X25	CCK-127625	200
14.2	3X25	CCK-142325	115
	3X50	CCK-142350	200
	4X40	CCK-142440	200
	4X50	CCK-142450	250
	5X40	CCK-142540	250
	6X25	CCK-142625	200
17.2	3X25	CCK-172325	150
	3X50	CCK-172350	2 X 150
	4X40	CCK-172440	250
	4X50	CCK-172450	2 X 150
	5X40	CCK-172540	2 X 150
	6X25	CCK-172625	250
