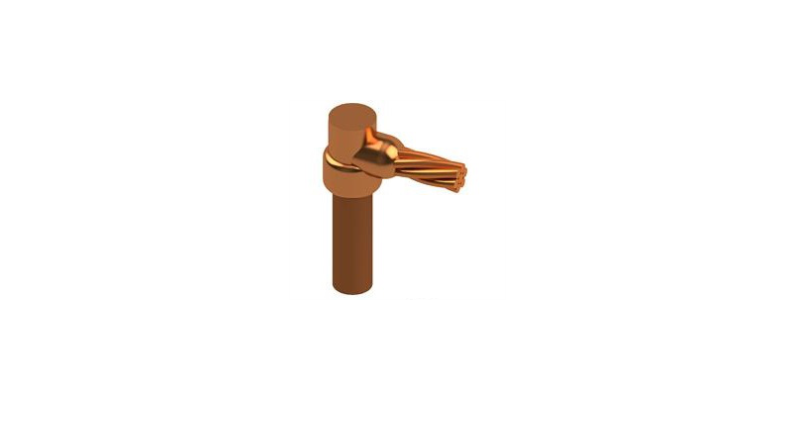

Cable to Rod Joint

The cable-to-rod joint is essential for bonding a grounding cable to a grounding rod. This connection is fundamental in grounding systems as it helps safely direct excess electrical current into the earth. Exothermic welding creates a molecular-level bond between the cable and rod, ensuring a strong, conductive connection that will not loosen over time. This joint is typically used in building foundations, telecommunications towers, and outdoor installations, where grounding rods are embedded in the soil to dissipate electrical surges from lightning or power faults effectively.

Rod Size (Dia mm)	Cable Size mm2	Mould	Weld Powder
12.7	25	CCE-12725	65
	35	CCE-12735	65
	50	CCE-12750	65
	70	CCE-12770	90
	95	CCE-12795	90
	120	CCE-127120	90
14.2	25	CCE-14225	90
	35	CCE-14235	90
	50	CCE-14250	115
	70	CCE-14270	115
	95	CCE-14295	115
	120	CCE-142120	115
	150	CCE-142150	150
17.2	25	CCE-17225	90
	35	CCE-17235	90
	50	CCE-17250	90
	70	CCE-17270	115
	95	CCE-17295	115
	120	CCE-172120	115
