Cable Lugs

Copper cable lugs, also known as cable shoes or terminal ends, play a crucial role in electrical setups by securely connecting or terminating power cables within various electrical systems. These components are indispensable in a wide range of applications where safe and efficient power transmission is essential, whether it’s in power distribution panels, junction boxes, or machinery. Cable lugs simplify the process of making connections by providing a stable interface between cables and electrical equipment, which is particularly important for maintaining the safety, durability, and effectiveness of installations. Due to the nature of copper as a material—its high conductivity, corrosion resistance, and durability—copper lugs are widely preferred over alternatives and are used across sectors like industrial manufacturing, renewable energy, telecommunications, and residential construction.

The termination of power cables is a critical step in any electrical installation, as it directly impacts the stability and performance of the system. Poorly terminated connections are a frequent cause of electrical failures, which can lead to overheating, short circuits, or even fires. Copper cable lugs provide a safe and reliable means to ensure a secure termination, especially where current-carrying capacity is high. By providing a low-resistance path, copper lugs help maintain efficiency and minimize power losses. Additionally, they offer flexibility, allowing for easy disconnection when repairs or maintenance are required. This ease of use and adaptability makes them ideal for applications where regular maintenance or changes in wiring are expected.

Copper cable lugs are valued for several key properties that make them the preferred choice for many electrical installations. Copper’s high conductivity ensures efficient power transmission with minimal resistance, which is crucial in applications where even a small loss of current can impact performance. Additionally, copper is highly resistant to corrosion, a factor that is particularly important in environments exposed to moisture, chemicals, or other elements that can degrade metal over time. By choosing copper cable lugs, engineers and electricians can ensure that connections remain stable and efficient for extended periods.

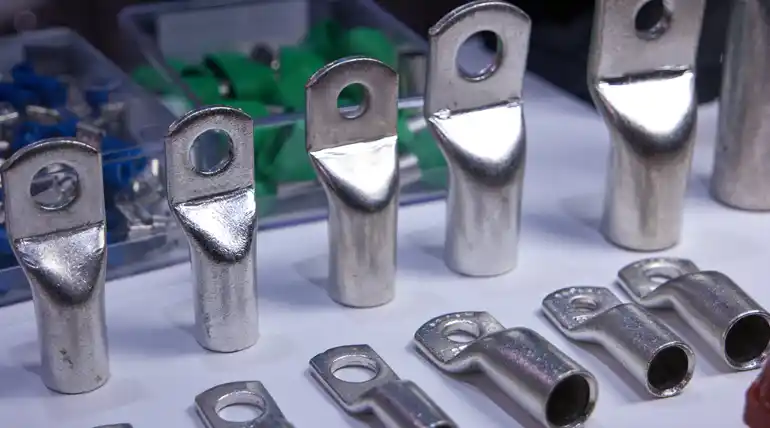

The basic design of a copper cable lug includes a hollow tubular structure that allows the stripped end of a cable to be inserted. The opposite end is flattened to form a connection point that can be fastened using a bolt or screw, often secured to bus bars, terminal blocks, or equipment connection points. This simple yet effective design is highly functional across various electrical setups, as it provides a robust mechanical and electrical connection. The insertion end of the lug may be crimped, soldered, or welded to ensure that the cable stays firmly in place, even under high electrical load or physical stress.

Copper cable lugs come in different types and shapes, each designed to meet specific application needs. For instance, ring lugs, which have a ring-shaped end, are commonly used in applications where a permanent connection is needed. Fork lugs, with a forked end, allow easy attachment and removal, making them ideal for environments where cables may need frequent disconnections. Pin terminals, used with terminal blocks, and butt connectors, which join two cables end-to-end, provide additional versatility. The variety in types allows copper cable lugs to cater to a broad range of applications, from high-power industrial setups to smaller, controlled environments.

Manufacturing copper cable lugs involves a precise and multi-step process to achieve the quality and durability required for industrial and commercial use. The process starts with selecting copper tubes that meet specific size and thickness requirements. These tubes are annealed, a heat treatment process that makes the copper softer and more malleable. Annealing is critical, as it allows the material to withstand the shaping and forming stages without cracking. The copper tubes are then cut into lengths suited to the dimensions of the final product. After cutting, the tubular copper sections undergo forging, where they are shaped into the basic structure of the lug. A hole is punched on the flat end of the lug to accommodate the bolt or screw needed for attachment. In the final stages of production, copper lugs are often tin-plated to prevent oxidation. This protective layer of tin not only enhances the appearance of the lug but also ensures long-term conductivity, even in harsh environments. The manufacturing process concludes with rigorous quality control testing, where lugs are checked for dimensional accuracy, tensile strength, and conductivity to ensure that they meet industry standards.

Copper cable lugs are incredibly versatile and widely used across a variety of industries. In industrial and manufacturing environments, these lugs are essential for connecting high-capacity cables to equipment such as motors, generators, and transformers. The ability of copper cable lugs to handle large amounts of current without compromising safety or performance makes them ideal for heavy-duty setups. They are also common in the automotive and transportation industries, where they connect battery terminals and grounding cables in vehicles. Here, the durability and resistance to temperature fluctuations offered by copper lugs are particularly beneficial.

In the renewable energy sector, copper cable lugs play a vital role in solar and wind power systems. Solar panels and wind turbines generate significant electrical output, and copper lugs are often used to connect these sources to storage systems or the grid. Their stability and conductivity ensure minimal power loss, maximizing the efficiency of renewable energy systems. Copper cable lugs are also prevalent in telecommunications, providing reliable connections for equipment that must maintain uninterrupted service, even in outdoor installations. In residential and commercial construction, copper lugs are widely used in electrical wiring to connect main power lines to distribution panels, helping distribute power safely throughout buildings.
