Cable Terminal Lug Aus Series

The AUS Series cable terminal lug is designed to meet Australian standards, providing reliable and efficient connections for a wide range of electrical applications. Made with high-quality copper, these lugs are ideal for industries and installations that require adherence to Australian electrical standards. They are suitable for both industrial and commercial applications, ensuring optimal conductivity and durability in demanding environments.

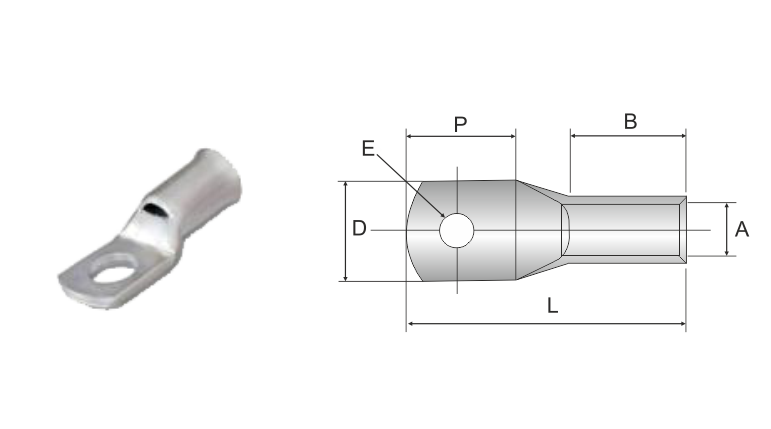

Part No.	Cable Size mm2	Stud Hole Size	Cable Lug Dimension (mm)
		E	A	D	B	G	H	L
AUT1006	10	6.5	4.5	10.065	10	6	7	28
AUT1008	10	8.5	4.5	10.065	10	7	8	30
AUT1606	16	6.5	5.5	11.135	19	6	8	38
AUT1608	16	8.5	5.5	11.135	19	8	8	40
AUT2508	25	8.5	7	13.490	21	8	8	42
AUT2510	25	10.5	7	13.490	21	10	10	46
AUT3508	35	8.5	8	15.560	21	8	8	42
AUT3510	35	10.5	8	15.560	21	10	10	46
AUT5010	50	10.5	9.5	18.615	22	11	12	51
AUT5012	50	12.5	9.5	18.615	22	11	12	51
AUT7010	70	10.5	11.2	21.084	24	11	12	54
AUT7012	70	12.5	11.2	21.084	24	11	12	54
AUT9510	95	10.5	13.7	25.209	27	11	12	60
AUT9512	95	12.5	13.7	25.209	27	11	12	60
AUT12012	120	12.5	15.6	29.892	30	14	14	70
AUT12014	120	14.5	15.5	29.835	30	14	14	70
AUT12016	120	16.5	15.5	29.835	30	15	15	72
AUT15012	150	12.5	16.5	30.605	30	14	14	71
AUT15014	150	14.5	16.5	30.605	30	14	14	71
AUT15016	150	16.5	16.5	30.605	30	15	15	73
AUT18512	185	12.5	18.5	35.545	32	14	14	75
AUT18514	185	14.5	18.5	35.545	32	14	14	75
AUT18516	185	16.5	18.5	35.545	32	15	15	77
AUT24012	240	12.5	21	40.970	38	20	20	92
AUT24014	240	14.5	21	40.970	38	20	20	92
AUT24016	240	16.5	21	40.970	38	20	20	92
AUT30012	300	12.5	23.5	45.895	42	22	22	101
AUT30014	300	14.5	23.5	45.895	42	22	22	101
AUT30016	300	16.5	23.5	45.895	42	22	22	101
AUT40016	400	17	28.5	52.745	44	22	22	106
AUT40020	400	21	28.5	52.745	44	22	22	106
AUT50016	500	17	30	56.100	50	28	28	124
AUT50020	500	21	30	56.100	50	28	28	124
AUT63016	630	17	35	64.950	60	33	33	144
AUT63020	630	21	35	64.950	60	33	33	144

Technical Data

• All dimensions in mm
• Material: cable lugs manufactured from electrolytic copper
• Range: cable lug range from 10 to 630 mm with different stud hole
• Finish: lead free electro tin plated to prevent atmospheric corrosion
• Application: used for termination of copper conductors to equipment, transformers, busbars & switch gear panels.
