Cable Lug Nema Std - Two Hole

The two-hole NEMA-standard cable terminal lug offers increased stability, with dual bolting points for secure attachment to NEMA-compliant equipment. This lug type is ideal for applications where a more stable connection is required, such as in high-vibration environments or with heavy-duty electrical equipment. The two-hole configuration helps distribute current evenly, enhancing the reliability and longevity of the connection.

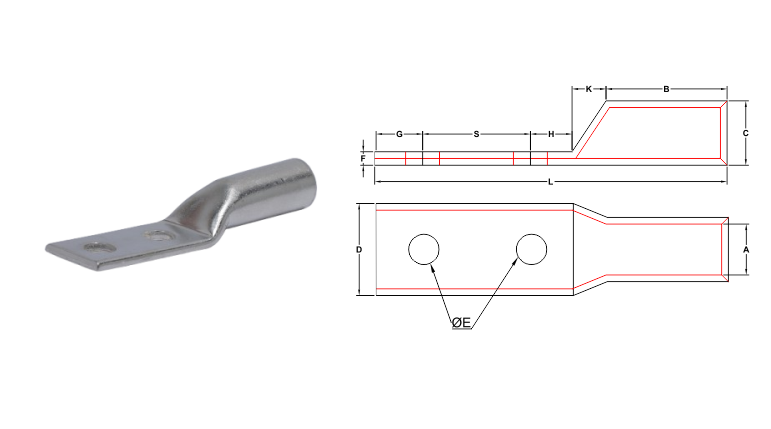

Part No.	Cable Size AWG	Stud Hole Size	Cable Lug Dimension (mm)
		E	A	C	D	B	G	S	L
ECTNE82N381	8	3/8	0.323	0.586	0.787	0.47	0.98	0.47	2.91
ECTNE82N12	8	1/2	0.453	0.829	0.787	0.67	1.75	0.67	4.07
ECTNE82N	8	1/1.75	0.453	0.829	0.787	0.67	1.75	0.67	4.07
ECTNE62N381	6	3/8	0.323	0.586	1.102	0.47	0.98	0.47	3.23
ECTNE62N12	6	1/2	0.453	0.829	1.102	0.67	1.75	0.67	4.39
ECTNE62N	6	1/1.75	0.453	0.829	1.102	0.67	1.75	0.67	4.39
ECTNE42N381	4	3/8	0.323	0.586	1.102	0.47	0.98	0.47	3.27
ECTNE42N12	4	1/2	0.453	0.829	1.102	0.67	1.75	0.67	4.43
ECTNE42N	4	1/1.75	0.453	0.829	1.102	0.67	1.75	0.67	4.43
ECTNE22N381	2	3/8	0.323	0.601	1.181	0.47	0.98	0.47	3.35
ECTNE22N12	2	1/2	0.453	0.829	1.181	0.67	1.75	0.67	4.51
ECTNE22N	2	1/1.75	0.453	0.829	1.181	0.67	1.75	0.67	4.51
ECTNE102N381	1/0	3/8	0.374	0.733	1.378	0.47	0.98	0.47	3.62
ECTNE102N12	1/0	1/2	0.453	0.829	1.378	0.67	1.75	0.67	4.78
ECTNE102N	1/0	1/1.75	0.453	0.829	1.378	0.67	1.75	0.67	4.78
ECTNE202N381	2/0	3/8	0.453	0.829	1.496	0.47	0.98	0.47	3.78
ECTNE202N12	2/0	1/2	0.453	0.829	1.496	0.67	1.75	0.67	4.94
ECTNE202N	2/0	1/1.75	0.453	0.829	1.496	0.67	1.75	0.67	4.94
ECTNE302N381	3/0	3/8	0.492	0.891	1.496	0.47	0.98	0.47	3.78
ECTNE302N12	3/0	1/2	0.492	0.891	1.496	0.67	1.75	0.67	4.94
ECTNE302N	3/0	1/1.75	0.492	0.891	1.496	0.67	1.75	0.67	4.94
ECTNE402N381	4/0	3/8	0.531	0.972	1.654	0.47	0.98	0.47	3.94
ECTNE402N12	4/0	1/2	0.531	0.972	1.654	0.67	1.75	0.67	5.10
ECTNE402N	4/0	1/1.75	0.531	0.972	1.654	0.67	1.75	0.67	5.10
ECTNE3002N381	300MCM	3/8	0.650	1.197	1.969	0.47	0.98	0.47	4.45
ECTNE3002N12	300MCM	1/2	0.650	1.197	1.969	0.67	1.75	0.67	5.61
ECTNE3002N	300MCM	1/1.75	0.650	1.197	1.969	0.67	1.75	0.67	5.61
ECTNE3502N381	350MCM	3/8	0.689	1.259	1.969	0.47	0.98	0.47	4.49
ECTNE3502N12	350MCM	1/2	0.689	1.259	1.969	0.67	1.75	0.67	5.65
ECTNE3502N	350MCM	1/1.75	0.689	1.259	1.969	0.67	1.75	0.67	5.65
ECTNE5002N381	500MCM	3/8	0.827	1.515	2.362	0.47	0.98	0.47	4.88
ECTNE5002N12	500MCM	1/2	0.827	1.515	2.362	0.67	1.75	0.67	6.04
ECTNE5002N	500MCM	1/1.75	0.827	1.515	2.362	0.67	1.75	0.67	6.04
ECTNE6002N381	600MCM	3/8	0.925	1.708	2.756	0.47	0.98	0.47	5.47
ECTNE6002N12	600MCM	1/2	0.925	1.708	2.756	0.67	1.75	0.67	6.63
ECTNE6002N	600MCM	1/1.75	0.925	1.708	2.756	0.67	1.75	0.67	6.63
ECTNE8002N	800MCM	1/1.75	1.181	2.091	2.953	0.67	1.75	0.67	6.95
ECTNE10002N	1000MCM	1/1.75	1.220	2.192	2.953	0.67	1.75	0.67	7.11
ECTNE12502N	1250MCM	1/1.75	1.378	2.518	3.150	0.67	1.75	0.67	7.42

Technical Data

• All dimensions in mm
• Material: cable lugs manufactured from electrolytic copper
• Range: cable lug range from 8AWG to 1250AWG mm with different studhole
• Finish: lead free electro tin plated to prevent atmospheric corrosion
• Application: used for termination of copper conductors to equipment, transformers, busbars & switch gear panels.
