Cable Lug Nema Std - One Hole

Conforming to NEMA (National Electrical Manufacturers Association) standards, this one-hole cable terminal lug ensures compatibility with NEMA-rated equipment and systems in North America. It’s designed for secure, reliable connections with straightforward installation, commonly used in industrial, commercial, and residential electrical installations. NEMA-standard lugs provide assurance of quality and compatibility with various NEMA-rated devices.

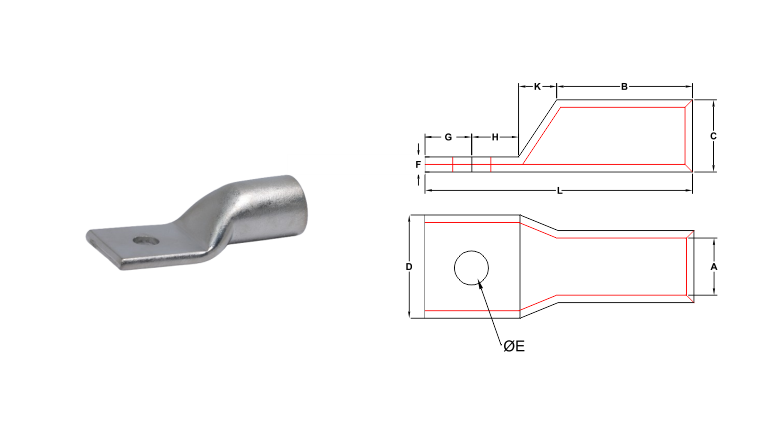

Part No.	Cable Size AWG	Stud Hole Size	Cable Lug Dimension (mm)
		E	A	C	D	B	G	L
ECTNE8N38	8	3/8	0.323	0.586	0.787	0.472	0.472	1.929
ECTNE8N12	8	1/2	0.453	0.829	0.787	0.669	0.669	2.323
ECTNE8N	8	1/1.75	0.453	0.829	0.787	0.669	0.669	2.323
ECTNE6N38	6	3/8	0.323	0.586	1.102	0.472	0.472	2.244
ECTNE6N12	6	1/2	0.453	0.829	1.102	0.669	0.669	2.638
ECTNE6N	6	1/1.75	0.453	0.829	1.102	0.669	0.669	2.638
ECTNE4N38	4	3/8	0.323	0.586	1.102	0.472	0.472	2.283
ECTNE4N12	4	1/2	0.453	0.829	1.102	0.669	0.669	2.677
ECTNE4N	4	1/1.75	0.453	0.829	1.102	0.669	0.669	2.677
ECTNE2N38	2	3/8	0.323	0.601	1.181	0.472	0.472	2.362
ECTNE2N12	2	1/2	0.453	0.829	1.181	0.669	0.669	2.756
ECTNE2N	2	1/1.75	0.453	0.829	1.181	0.669	0.669	2.756
ECTNE10N38	1/0	3/8	0.374	0.733	1.378	0.472	0.472	2.638
ECTNE10N12	1/0	1/2	0.453	0.829	1.378	0.669	0.669	3.031
ECTNE10N	1/0	1/1.75	0.453	0.829	1.378	0.669	0.669	3.031
ECTNE20N38	2/0	3/8	0.453	0.829	1.496	0.472	0.472	2.795
ECTNE20N12	2/0	1/2	0.453	0.829	1.496	0.669	0.669	3.189
ECTNE20N	2/0	1/1.75	0.453	0.829	1.496	0.669	0.669	3.189
ECTNE30N38	3/0	3/8	0.492	0.891	1.496	0.472	0.472	2.795
ECTNE30N12	3/0	1/2	0.492	0.891	1.496	0.669	0.669	3.189
ECTNE30N	3/0	1/1.75	0.492	0.891	1.496	0.669	0.669	3.189
ECTNE40N38	4/0	3/8	0.531	0.972	1.654	0.472	0.472	2.953
ECTNE40N12	4/0	1/2	0.531	0.972	1.654	0.669	0.669	3.346
ECTNE40N	4/0	1/1.75	0.531	0.972	1.654	0.669	0.669	3.346
ECTNE300N38	300MCM	3/8	0.650	1.197	1.969	0.472	0.472	3.465
ECTNE300N12	300MCM	1/2	0.650	1.197	1.969	0.669	0.669	3.858
ECTNE300N	300MCM	1/1.75	0.650	1.197	1.969	0.669	0.669	3.858
ECTNE350N38	350MCM	3/8	0.689	1.259	1.969	0.472	0.472	3.504
ECTNE350N12	350MCM	1/2	0.689	1.259	1.969	0.669	0.669	3.898
ECTNE350N	350MCM	1/1.75	0.689	1.259	1.969	0.669	0.669	3.898
ECTNE500N38	500MCM	3/8	0.827	1.515	2.362	0.472	0.472	3.898
ECTNE500N12	500MCM	1/2	0.827	1.515	2.362	0.669	0.669	4.291
ECTNE500N	500MCM	1/1.75	0.827	1.515	2.362	0.669	0.669	4.291
ECTNE600N38	600MCM	3/8	0.925	1.708	2.756	0.472	0.472	4.488
ECTNE600N12	600MCM	1/2	0.925	1.708	2.756	0.669	0.669	4.882
ECTNE600N	600MCM	1/1.75	0.925	1.708	2.756	0.669	0.669	4.882
ECTNE800N	800MCM	1/1.75	1.181	2.091	2.953	0.669	0.669	5.197
ECTNE1000N	1000MCM	1/1.75	1.220	2.192	2.953	0.669	0.669	5.354
ECTNE1250N	1250MCM	1/1.75	1.378	2.518	3.150	0.669	0.669	5.669

Technical Data

• All dimensions in mm
• Material: cable lugs manufactured from electrolytic copper
• Range: cable lug range from 8AWG to 1250AWG mm with different studhole
• Finish: lead free electro tin plated to prevent atmospheric corrosion
• Application: used for termination of copper conductors to equipment, transformers, busbars & switch gear panels.
