Cable Lug Four Bolt Hole Type

This lug is designed for applications that require a highly stable connection, featuring four bolting holes for maximum grip and stability on busbars or terminals. Ideal for large-scale electrical systems and critical connections in industrial power applications, the four-hole lug ensures minimal risk of detachment or connection loss under stress. These lugs are commonly used in large transformers, switchgear, and heavy duty power distribution systems.

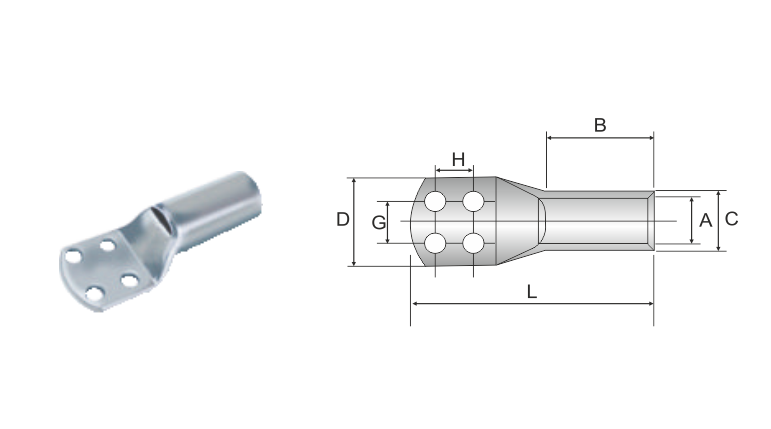

Part No.	Cable Size mm2	Stud Hole Size	Cable Lug Dimension (mm)
		E	A	C	D	B	G	H	L
CT4N40010	400	10.5	28.5	36.5	52.745	44	35	25	114
CT4N40012	400	12.5	28.5	36.5	52.745	44	35	25	114
CT4N50010	500	10.5	30	39	56.100	50	35	25	124
CT4N50012	500	12.5	30	39	56.100	50	35	25	124
CT4N63010	630	10.5	35	45	64.950	60	35	25	144
CT4N63012	630	12.5	35	45	64.950	60	35	25	144
CT4N80014	800	14.5	39	50.6	72.830	78	35	25	170
CT4N100014	1000	14.5	43	56.2	80.710	90	35	25	200

Technical Data

• All dimensions in mm
• Material: cable lugs manufactured from electrolytic copper
• Range: cable lug range from 400 to 1000 mm with di erent stud hole
• Finish: lead free electro tin plated to prevent atmospheric corrosion
• Application: used for termination of copper conductors to equipment, transformers, busbars & switch gear panels.
