Cable Lug Regular

The regular cable terminal lug is widely used for basic cable terminations in electrical systems. Designed for standard applications, it features a single bolting hole and a tubular barrel, where the cable is inserted and crimped for a secure connection. Made from high-conductivity materials such as copper, these lugs are suitable for general-purpose electrical installations and ensure reliable connections. Regular cable terminal lugs are versatile and ideal for low to medium current applications in residential, commercial, and light industrial settings.

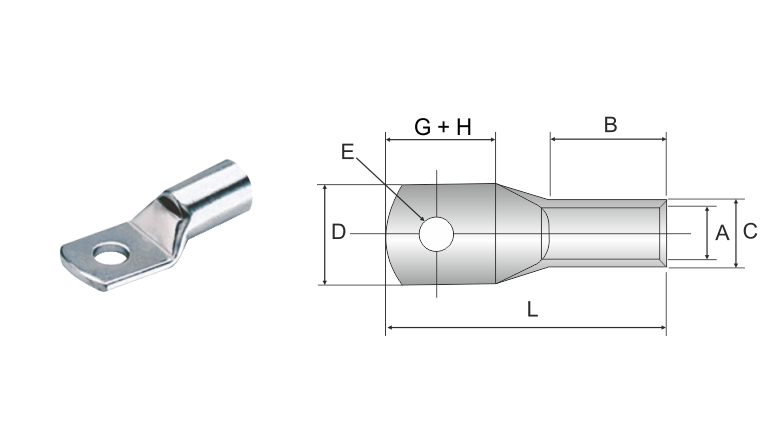

Part No.	Cable Size mm2	Stud Hole Size	Cable Lug Dimension (mm)
		E	A	C	D	B	G	H	L
CT1.506	1.5	6.5	1.8	3.7	4.726	5	6	6	20
CT2.506	2.5	6.5	2.5	4.0	5.425	7	6	6	22
CT4.006	4	6.5	3.2	4.8	6.624	7	6	6	22
CT6.006	6	6.5	3.8	5.5	7.666	9	6	7	27
CT6.008	6	8.5	3.8	5.5	7.666	9	8	9	31
CT1006	10	6.5	4.5	6.2	8.765	9	6	7	27
CT1008	10	8.5	4.5	6.2	8.765	9	7	8	29
CT1606	16	6.5	5.5	7.1	10.235	12	6	8	31
CT1608	16	8.5	5.5	7.1	10.235	12	8	8	33
CT2508	25	8.5	6.8	8.8	12.676	12	9	10	36
CT2510	25	10.5	6.8	8.8	12.676	12	11	12	40
CT3508	35	8.5	8.2	10.6	15.274	12	9	10	36
CT3510	35	10.5	8.2	10.6	15.274	12	11	12	40
CT5010	50	10.5	9.5	12.4	17.815	17	11	12	46
CT5012	50	12.5	9.5	12.4	17.815	17	11	12	46
CT7010	70	10.5	11.2	14.7	21.084	18	13	13	51
CT7012	70	12.5	11.2	14.7	21.084	18	13	13	51
CT9510	95	10.5	13.7	17.4	25.209	20	14	14	57
CT9512	95	12.5	13.7	17.4	25.209	20	14	14	57
CT12012	120	12.5	15	19.4	27.950	22	15	15	64
CT12014	120	14.5	15	19.4	27.950	22	15	15	64
CT12016	120	16.5	15	19.4	27.950	22	15	15	64
CT15012	150	12.5	16.5	21.2	30.605	25	16	16	70
CT15014	150	14.5	16.5	21.2	30.605	25	16	16	70
CT15016	150	16.5	16.5	21.2	30.605	25	16	16	70
CT18512	185	12.5	18.5	23.5	34.045	30	16	16	77
CT18514	185	14.5	18.5	23.5	34.045	30	16	16	77
CT18516	185	16.5	18.5	23.5	34.045	30	16	16	77
CT24012	240	12.5	21	26.5	38.470	38	20	20	92
CT24014	240	14.5	21	26.5	38.470	38	20	20	92
CT24016	240	16.5	21	26.5	38.470	38	20	20	92
CT30012	300	12.5	23.5	30	43.395	42	22	22	101
CT30014	300	14.5	23.5	30.0	43.395	42	22	22	101
CT30016	300	16.5	23.5	30.0	43.395	42	22	22	101
CT40016	400	17	28.5	36.5	52.745	44	26	26	114
CT40020	400	21	28.5	36.5	52.745	44	26	26	114
CT50016	500	17	30	39	56.100	50	28	28	124
CT50020	500	21	30	39	56.100	50	28	28	124
CT63016	630	17	35	45	64.950	60	33	33	144
CT63020	630	21	35	45	64.950	60	33	33	144
CT80020	800	21	39	50.6	72.830	78	40	35	170
CT100020	1000	21	43	56.2	80.710	90	45	45	200

Technical Data

• All dimensions in mm
• Material: cable lugs manufactured from electrolytic copper
• Range: cable lug range from 1.5 to 1000 mm2 with di erent stud hole
• Finish: lead free electro tin plated to prevent atmospheric corrosion
• Application: used for termination of copper conductors to equipment, transformers, busbars & switch gear panels.
