Cable Lug to DIN STD

This cable lug meets the DIN 46235 standard, which is widely recognized in Europe for high-quality, standardized electrical connections. Designed for use in heavy-duty power systems, these lugs ensure safe, efficient connections in compliance with stringent regulations. They are particularly suitable for use in industrial settings, such as power generation, switchgear, and distribution networks, where consistency and reliability are critical.

Part No.	Cable Size mm2	Stud Hole Size	Cable Lug Dimension (mm)

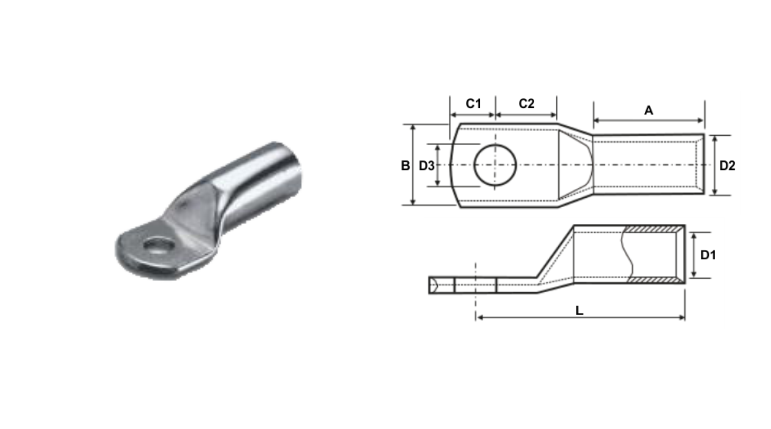

		E	A	B	C1	C2	D1	D2	D3	S	L
EUG1610	16	M10	20	17	15	12.0	5.5	8.5	10.5	2.5	36
EUG3510	35	M10	20	19	15	12	8.2	12.5	10.5	2.5	42
EUG3512	35	M13	20	21	16	13	8.2	12.5	13	2.5	42
EUG5012	50	M13	28	24	16	13	10	14.5	13	4	52
EUG7012	70	M13	28	24	16	13	11.5	16.5	13	4.5	55
EUG12012	120	M13	35	32	16	13	15.5	21	13	5.5	70
EUG18512	185	M13	40	37	16	13	19	25.5	13	6	82
EUG18516	185	M17	40	37	19	16	19	25.5	17	6	82
EUG24012	240	M13	40	42	16	13	21.5	29	13	6.5	92
EUG24016	240	M17	40	42	19	16	21.5	29	17	6.5	92
EUG30012	300	M13	50	48	16	13	24.5	32	13	7	100
EUG30016	300	M17	50	48	19	16	24.5	32	17	7	100
EUG50012	500	M13	70	60	25	20	31	42	13	10	125
EUG50016	500	M17	70	60	25	20	31	42	17	10	125

Technical Data

• All dimensions in mm
• Material: cable lugs manufactured from electrolytic copper
• Range: cable lug range from 16 to 500 mm with different studhole
• Finish: lead free electro tin plated to prevent atmospheric corrosion
• Application: used for termination of copper conductors to equipment, transformers, busbars & switch gear panels.
