Cable Lug Narrow Palm

Specifically designed for use with MCBs (Miniature Circuit Breakers), MCCBs (Molded Case Circuit Breakers), and RCCBs (Residual Current Circuit Breakers), this lug type ensures a secure and safe connection. Its design accommodates various breaker configurations, making it suitable for protection circuits and control panels. This lug helps maintain circuit integrity and provides an efficient path for current in protection systems, ensuring operational safety and reliability.

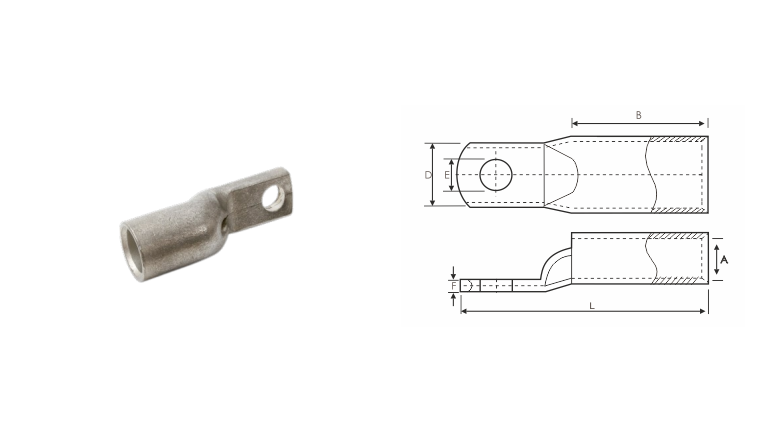

Part No.	Cable Size mm2	Stud Hole Size	Cable Lug Dimension (mm)
		E	A	D	B	L
CTNP3506	35	6.5	8.2	14	12	36
CTNP3508	35	8.5	8.2	14	12	36
CTNP5008	50	8.5	9.5	15	17	42
CTNP5010	50	10.5	9.5	17	17	46
CTNP7008	70	8.5	11.2	17	18	44
CTNP7010	70	10.5	11.2	19	18	48
CTNP9508	95	8.5	13.7	19	20	48
CTNP9510	95	10.5	13.7	19	20	52
CTNP12008	120	8.5	15	19	22	60
CTNP12010	120	10.5	15	19	22	60
CTNP15010	150	10.5	16.5	19	25	64
CTNP15012	150	12.5	16.5	19	25	64
CTNP18510	185	10.5	18.5	30	30	71
CTNP18512	185	12.5	18.5	30	30	71
CTNP24012	240	12.5	21	30	38	82
CTNP30012	300	12.5	23.5	30	42	87

Technical Data

• All dimensions in mm
• Material: cable lugs manufactured from electrolytic copper
• Range: cable lug range from 35 to 300 mm with different studhole
• Finish: lead free electro tin plated to prevent atmospheric corrosion
• Application: used for termination of copper conductors to equipment, transformers, busbars & switch gear panels.
