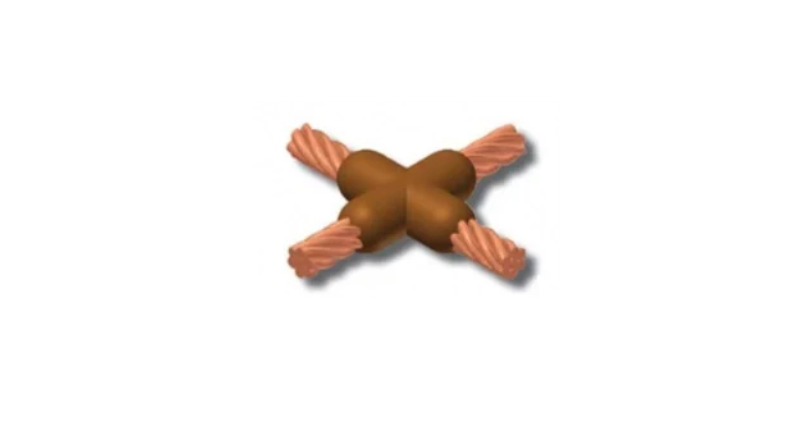

Horizontal Cross Joint

The horizontal cross joint connects four conductors at a central point, forming a cross shape. This joint is commonly used in grounding grids where multiple conductors intersect, providing a central hub for electrical continuity across different paths. The exothermic welding process ensures a reliable, permanent bond that remains unaffected by corrosion, thermal expansion, or physical vibrations. Horizontal cross joints are ideal for complex grounding networks in critical applications like data centers, utility stations, and large industrial facilities, where secure and consistent grounding is crucial.

Cable Size mm2	Mould	Weld Powder
25 - 25	CCC-2525	65
35 - 35	CCC-3535	65
35 - 25	CCC-3525	65
50 - 50	CCC-5050	115
50 - 35	CCC-5035	90
70 - 70	CCC-7070	115
70 - 50	CCC-7050	115
95 - 95	CCC-9595	200
95 - 70	CCC-9570	150
95 - 50	CCC-9550	150
120 - 120	CCC-120120	200
120 - 95	CCC-12095	200
120 - 70	CCC-12070	200
150 - 150	CCC-150150	250
150 - 120	CCC-150120	250
150 - 95	CCC-15095	200
150 - 70	CCC-15070	200
