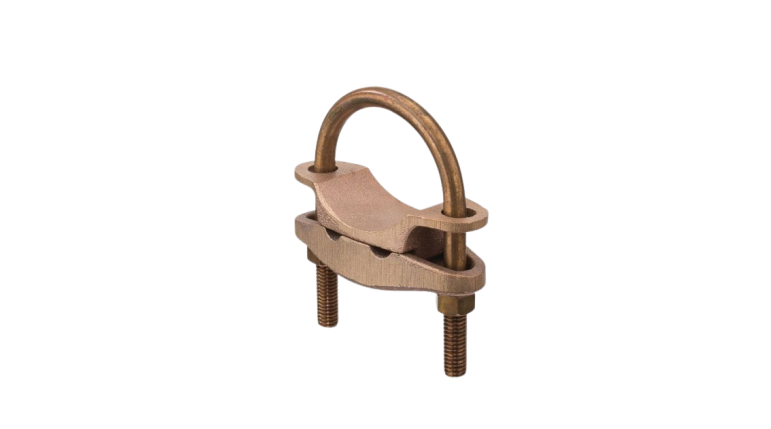

U Bolt Type PUB Clamp

PUB Type U Bolt clamps are designed to connect earthing conductors to pipes and round structures. PUB Clamps are used mainly to ground the underground pipelines. These clamps are made from high-quality, corrosion-resistant materials and provide a secure, low-resistance connection between the conductor and the pipe or rod structure. PUB clamps are essential for grounding systems in irrigation and oil piping system, ensuring the safety of both the equipment and the people within it.

SizeMaterialPart No.
5/8"Copper AlloyEUPUB58
3/4"Copper AlloyEUPUB34
1"Copper AlloyEUPUB10
1 1/2"Copper AlloyEUPUB15
2"Copper AlloyEUPUB20
2 1/2"Copper AlloyEUPUB25
3"Copper AlloyEUPUB30
4"Copper AlloyEUPUB40
** Choice of fastners & U bolt include MS / Brass / SS
