Design in accordance with

BS EN 60364

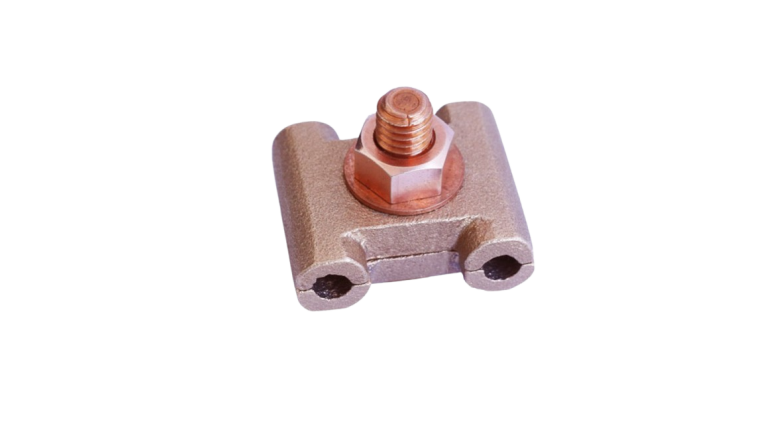

Parallel Clamp

Parallel clamps are used to connect two conductors in parallel, providing a strong and reliable mechanical and electrical connection. These clamps are made from high-quality, corrosion-resistant materials and are designed to ensure low-resistance, high-conductivity connections in grounding systems. Parallel clamps are essential in applications where multiple conductors need to be joined together, providing flexibility and reliability in electrical installations.

Conductor Range in mm²Set ScrewsPart No.
22-70M8 X 35mmEUPC070
70-95M10 x 45mmEUPC095
95-185M10 x 55mmEUPC185
185-240M10 x 55mmEUPC240
240-300M10 x 60mmEUPC300
Material: Copper Alloy
