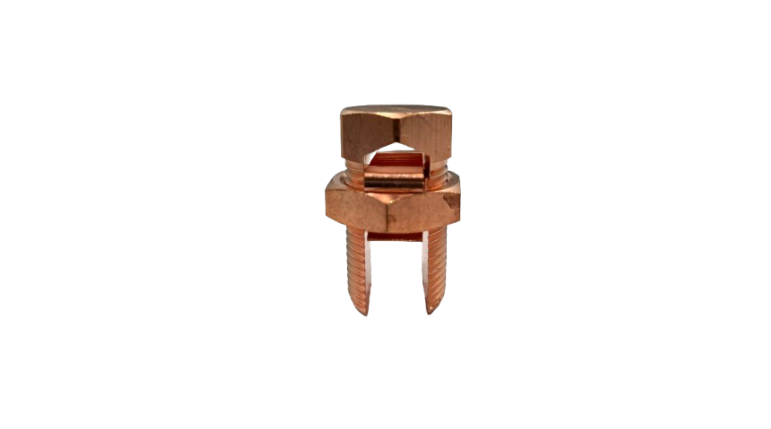

Split Bolt Connector

Split bolt connectors are designed to securely join two or more conductors in electrical grounding systems. Made from high-conductivity, corrosion-resistant metals like copper, these connectors provide a strong, low-resistance bond between conductors, ensuring efficient current transfer. Split bolt connectors are easy to install and adjust, making them ideal for a wide range of grounding applications in industrial, commercial, and residential settings.

Main Conductor mm²Tap Conductor mm²Part No.
101.5 - 10EUSBC010
162.5 - 16EUSBC016
252.5 - 25EUSBC025
352.5 - 35EUSBC035
502.5 - 50EUSBC050
702.5 - 70EUSBC070
952.5 - 90EUSBC095
12010 - 120EUSBC120
15010 - 150EUSBC150
18550 - 185EUSBC185
24095 - 240EUSBC240
For use with bare copper conductors
Material: Copper Alloy
